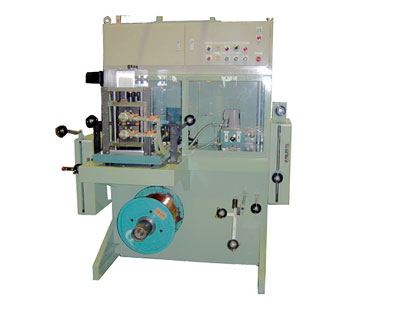

Rolling mill machine with feeding device

Rolling mill machine with feeding device

Feature
1. Can produce ultra-fine precision flat wires of high quality.
2. Traversing motion of rolling mill is made possible to realize longer life of rolling mill rolls.
3. Improved maintainability achieved through the concept of “Simple is best”.
4. Compact design for space saving.
5. Simple operation.
6. Fine control of wire tension by dancer realizes production of high quality wires.

Detail
Item File Size
Leaflet
(PDF file)		 Rolling mill machine with feeding device 251Kb
Movie
(MPEG file)		 Rolling mill machine with feeding device 8.02Mb

Diameter of bare round copper wire
φ0.2 - 0.4mm
φ0.3 - 0.6mm
φ0.4 - 0.8mm
φ0.6 - 1.2mm
Reduction ratio
(wire thickness : width)
1 : 8 - 1 : 12
Roll diameter
φ80mm
φ100mm
φ120mm
φ150mm
Wire speed (Max)150m/min [standard (Max)120m/min]
Wire line (Max) 1 line
Feeding device S500 type. Single shaft spoolers unit horizontal axis(Max 500kg)
Rolling mill machine 1-step rolling mill with pressure automatically control device(rolling mill machine traverse device and dancer type tension control device include).
Laser type measuring system(for automatic control of pressure applied to rolling rolls)
Rolling roll motor ES motor [Roll speed: 150 m/min (max.)]
Power source AC200V , 60Hz(50Hz) , 3-PHASE
Electric capacity abt. 3kW
Dimensions 1650mm(W)×1450mm(D)×2300mm(H)
